Name: 1730120
Brand: Phoenix Contact
SKU: 1730120
Price: 2.00000 USD
Availability: InStock

new-10%

1730120

Manufacturer part number:1730120

Manufacturer:Phoenix Contact

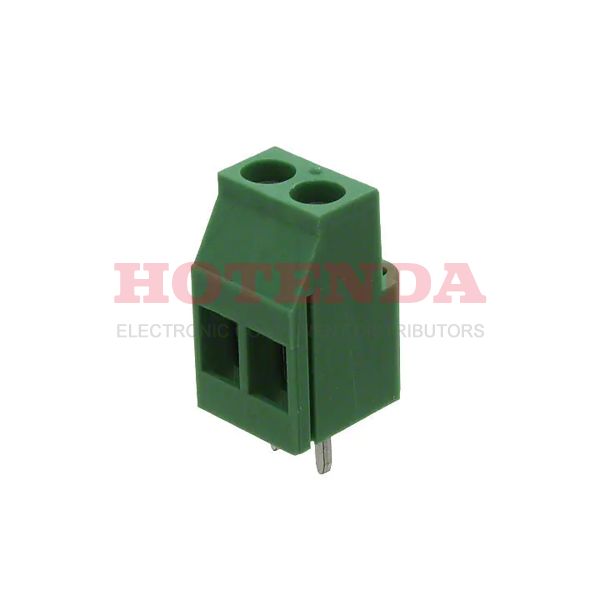

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDSP

Case Package:SOT-23

Datasheet:1730120 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	29.000003g
Packaging	Bulk
Series	COMBICON MKDSP
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Reach Compliance Code	unknown
Current Rating	17.5A
Number of Contacts	2
Wire Gauge	14-30 AWG
Voltage	300V
Max Current Rating	17.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Height	15.24mm
Length	11.15mm
Width	17.3mm
RoHS Status	RoHS Compliant

1730120 Product Details

1730120 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MKDSP Series.Other features include PA, 94V-0, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
