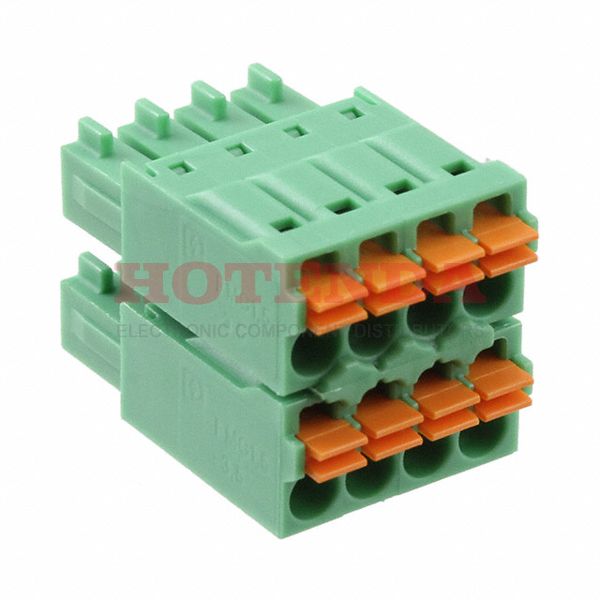

Home

1738827

1738827

1738827

Phoenix Contact

1738827 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1738827 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 4.983988g
PackagingBulk
Published 2010
Series COMBICON FMCD
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 8
Color Green
Number of Rows 2
Gender Female
Voltage - Rated 160V
Pitch 0.138 3.50mm
Orientation Straight
Depth 16mm
Insulation Height 0.630 16.00mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Max Current Rating 8A
Number of Levels 2
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Positions Per Level 4
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Fastening Method SPRING LOADED
Height 17mm
Length 22.9mm
Width 22.9mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:678 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$11.024939$11.024939
10$10.400885$104.00885
100$9.812156$981.2156
500$9.256751$4628.3755
1000$8.732784$8732.784

1738827 Product Details

1738827 Overview


Packaging for this item is Socket.Its mounting type is Free Hanging (In-Line).We use a Bulk case to package the product.Specifically, it is one of the products in the COMBICON FMCD Series.There's a Cable, Free Hanging on the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

1738827 Features


COMBICON FMCD series

1738827 Applications


There are a lot of Phoenix Contact 1738827 Terminal Blocks applications.

  • Automotive Electronics
  • Medical technology
  • Blowers
  • LED municipal outdoor and street lighting
  • Variable speed/frequency drivers
  • Telecommunications
  • Transportation
  • All Electrical Machinery
  • Instrumentation
  • Data Technology
