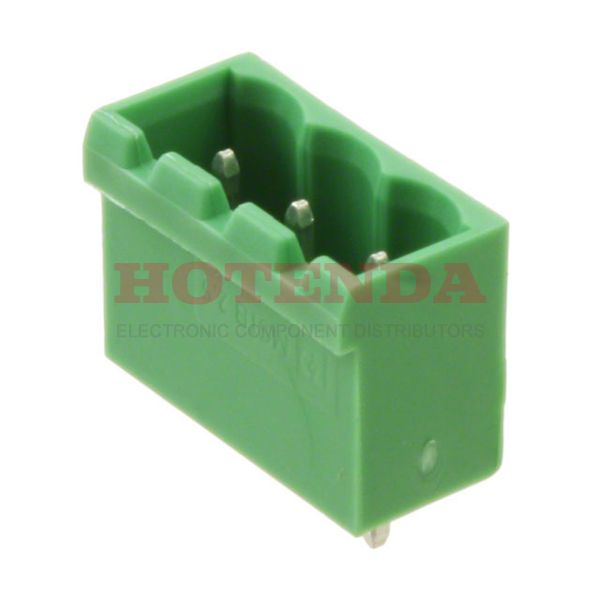

Name: 1755529
Brand: Phoenix Contact
SKU: 1755529
Price: 1.18000 USD
Availability: InStock

new-10%

1755529

Manufacturer part number:1755529

Manufacturer:Phoenix Contact

Description:1755529 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755529 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.719994g
Packaging	Bulk
Published	2005
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
Voltage - Rated DC	400V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CB, CSA, UL, VDE, cULus
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	3
Number of Decks	1
Number of Ways	3
Safety Approval	UL
Header Orientation	Vertical
Height	15.9mm
Length	17mm
Width	17mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755529 Product Details

1755529 Overview

Packaging is Plug.Through Hole is the mounting type for the device.Packaging the product involves using a Bulk case.The product belongs to the COMBICON MSTBVA Series.To name a few, there is also PBT, 94V-0.Mounted by Through Hole.The benefts of this part are similar to those of other Header, Male Pins, Shrouded (4 Side) products.
