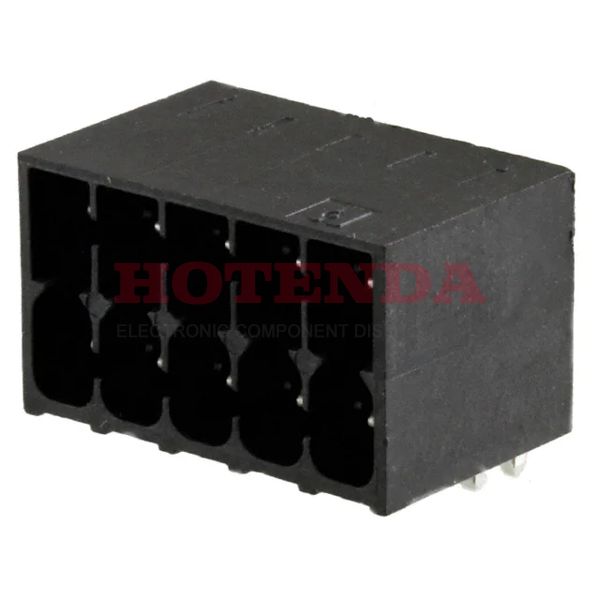

Name: 1786866
Brand: Phoenix Contact
SKU: 1786866
Price: 3.80000 USD
Availability: InStock

new-10%

1786866

Manufacturer part number:1786866

Manufacturer:Phoenix Contact

Description:1786866 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1786866 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Bulk
Published	2011
Series	COMBICON DMC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, LCP
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	11.6mm
Insulation Height	0.425 10.80mm
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.079 2.00mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	10
Safety Approval	CB; CUL; UL; VDE
Header Orientation	90°, Right Angle
Number of Positions Per Level	5
Fastening Method	CONNECTOR
Height	12.8mm
Length	18.3mm
Width	18.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1786866 Product Details

1786866 Overview

It comes in Plug packaging.Mounting type Through Hole is assigned to the device.It has been determined that a Bulk case is necessary to package the product.The product is a member of the COMBICON DMC Series.In addition, there are other features such as STANDARD: UL 94V-0, LCP, to mention only a few.In this case, Through Hole mounts the part.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
