Name: 1869651
Brand: Phoenix Contact
SKU: 1869651
Price: 1.68000 USD
Availability: InStock

new-10%

1869651

Manufacturer part number:1869651

Manufacturer:Phoenix Contact

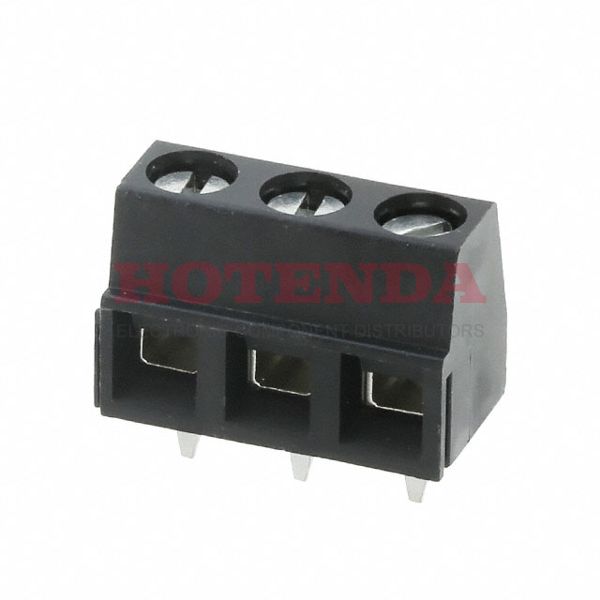

Description:0.200 5.08mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 18 AWG COMBICON MKDSN

Case Package:SOT-23

Datasheet:1869651 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON MKDSN
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Black
Number of Rows	1
Voltage - Rated	400V
Pitch	0.200 5.08mm
Current Rating	13.5A
Wire Gauge	18 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire/Cable Gauge	18 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	1
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Height	13.5mm
Length	8.1mm
Width	15.24mm
RoHS Status	RoHS Compliant

1869651 Product Details

1869651 Overview

The product is packaged in Screw.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON MKDSN Series.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.
