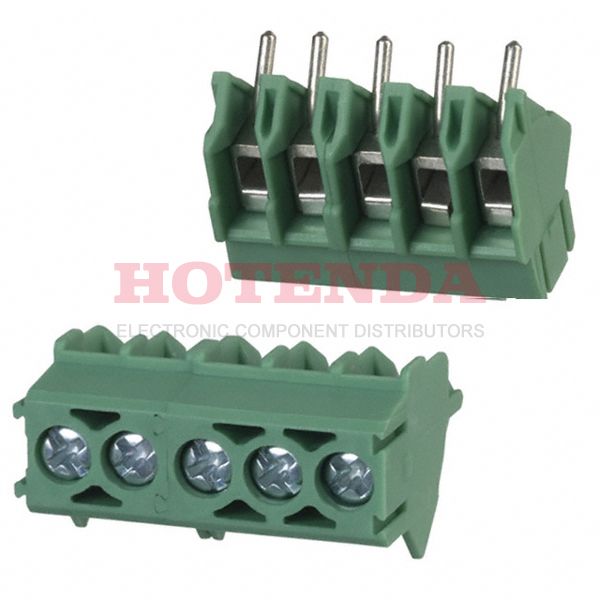

Name: 1988985
Brand: Phoenix Contact
SKU: 1988985
Price: 1.25000 USD
Availability: InStock

new-10%

1988985

Manufacturer part number:1988985

Manufacturer:Phoenix Contact

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screw 1 Levels 16-26 AWG COMBICON PTA

Case Package:SOT-23

Datasheet:1988985 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	2.439987g
Packaging	Bulk
Series	COMBICON PTA
Published	2005
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	9.9mm
Reach Compliance Code	unknown
Current Rating	17.5A
Approval Agency	UL
Number of Contacts	5
Wire Gauge	16-26 AWG
Voltage	300V
Max Current Rating	17.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	5
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screw
Screw Thread	M2
Height	13.7mm
Length	17.5mm
Width	11.2mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1988985 Product Details

1988985 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON PTA Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
