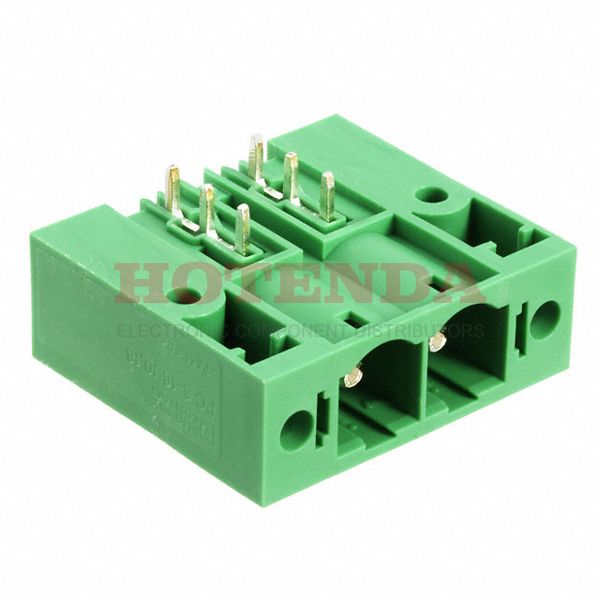

Name: 1999000
Brand: Phoenix Contact
SKU: 1999000
Price: 7.06000 USD
Availability: InStock

new-10%

1999000

Manufacturer part number:1999000

Manufacturer:Phoenix Contact

Description:1999000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1999000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Silver
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	13.640005g
Packaging	Bulk
Published	2011
Series	COMBICON PC
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	1kV
HTS Code	8536.69.40.40
Pitch	0.400 10.16mm
Orientation	Right Angle
Insulation Height	0.528 13.40mm
Current Rating	76A
Termination Style	Solder
Voltage	600V
Contact Tail Length	0.157 4.00mm
Number of Levels	1
Current	66A
Voltage - UL	300V
Number of Decks	1
Number of Ways	2
Header Orientation	90°, Right Angle
Current - IEC	76A
Number of Positions Per Level	2
Height	13.5mm
Length	17.4mm
Width	38.08mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1999000 Product Details

1999000 Overview

This product is packaged in a Plug box.This device's mounting type is Through Hole.A Bulk case is used to package the product.There is a product in the COMBICON PC Series.A minimum temperature of -40°C must be maintained for the operation of this device.This feature makes it more powerful in a number of ways due to its Mating and Mounting Flange feature.Mounted by Through Hole.Many Header, Male Pins, Shrouded (4 Side) products share the same benefits as this part.
