SN74LVTH16374ZRDR Overview

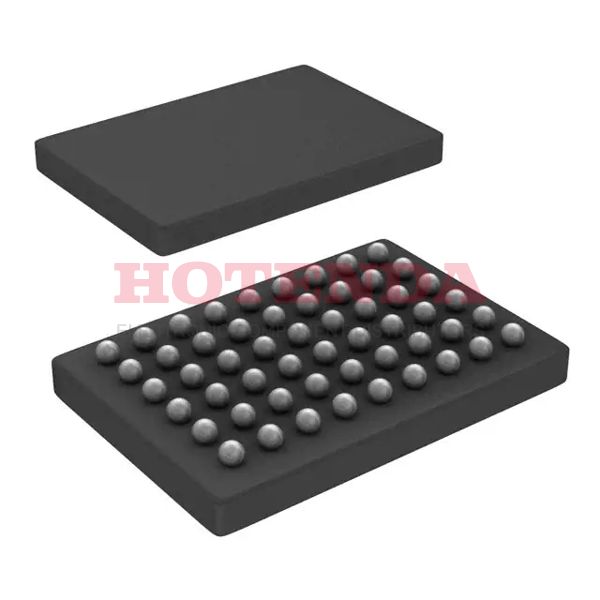

The package is in the form of 54-TFBGA. As part of the package Tape & Reel (TR), it is embedded. As configured, the output uses Tri-State, Non-Inverted. It is configured with a trigger that uses a value of Positive Edge. Surface Mountis positioned in the way of this electronic part. A voltage of 2.7V~3.6Vis used as the supply voltage. -40°C~85°C TAis the operating temperature. This electronic flip flop is of type D-Type. FPGAs belonging to the 74LVTHseries contain this type of chip. A frequency of 160MHzshould not be exceeded by its output. There are 2 elements in it. As a result, it consumes 190μA of quiescent current without being affected by external factors. Input capacitance of this device is 3pF farads.
SN74LVTH16374ZRDR Features
Tape & Reel (TR) package
74LVTH series
SN74LVTH16374ZRDR Applications
There are a lot of Rochester Electronics, LLC SN74LVTH16374ZRDR Flip Flops applications.
- Load Control
- Instrumentation
- Shift registers
- ESCC
- Power down protection
- Bus hold
- Frequency Divider circuits
- Individual Asynchronous Resets
- Single Down Count-Control Line
- Guaranteed simultaneous switching noise level
