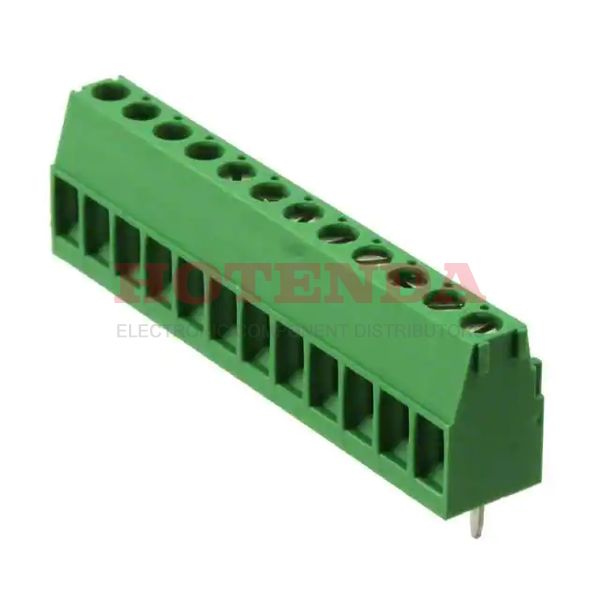

Name: 1-284392-2
Brand: TE Connectivity AMP Connectors
SKU: 1-284392-2
Price: 8.90000 USD
Availability: InStock

new

1-284392-2

Manufacturer part number:1-284392-2

Manufacturer:TE Connectivity AMP Connectors

Description:0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG Buchanan

Case Package:SOT-23

Datasheet:1-284392-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Tray
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	12.6mm
Current Rating	12A
Number of Contacts	12
Wire Gauge	14-30 AWG
ELV	Compliant
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.25 Nm (2.2 Lb-In)
Number of Ways	12
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Length	45.72mm
Width	8.2mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1-284392-2 Product Details

1-284392-2 Overview

Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Buchanan Series, it can be found in this category.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
