Name: 1776113-5
Brand: TE Connectivity AMP Connectors
SKU: 1776113-5
Price: 4.85000 USD
Availability: InStock

new-10%

1776113-5

Manufacturer part number:1776113-5

Manufacturer:TE Connectivity AMP Connectors

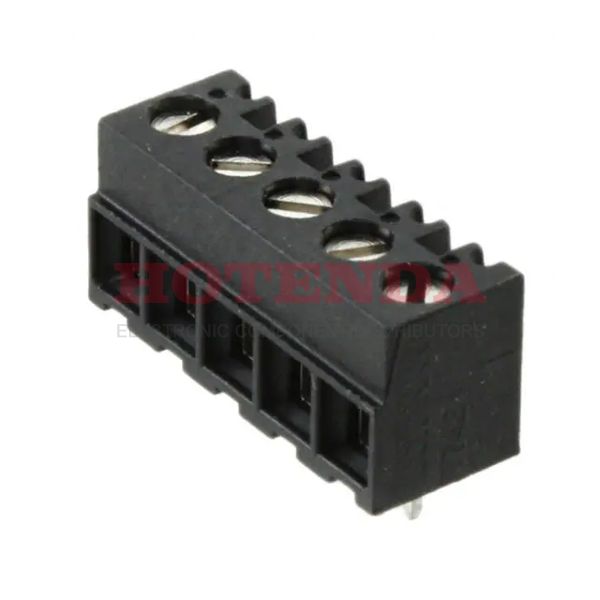

Description:0.150 3.81mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan

Case Package:SOT-23

Datasheet:1776113-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Copper Alloy - Nickel Plated
Screw Material - Plating	Copper Alloy - Nickel Plated
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	Buchanan
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Receptacle
Color	Black
Number of Rows	1
Voltage - Rated	150V
Pitch	0.150 3.81mm
Orientation	Straight
Current Rating	12A
Number of Contacts	5
Wire Gauge	16-28 AWG
ELV	Compliant
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	5
Thread Size	M2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Length - Tail	2.6mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776113-5 Product Details

1776113-5 Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-40°C~110°C Operating Temperature is the default operating temperature for the device.
