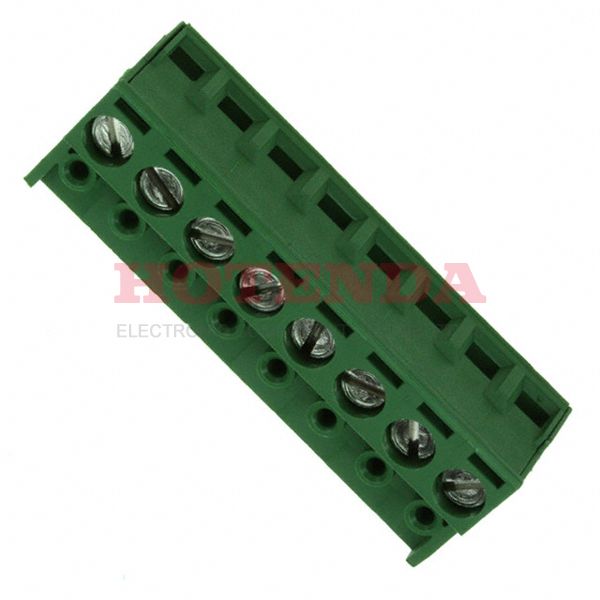

Name: 282830-8
Brand: TE Connectivity AMP Connectors
SKU: 282830-8
Price: 6.21000 USD
Availability: InStock

new-10%

282830-8

Manufacturer part number:282830-8

Manufacturer:TE Connectivity AMP Connectors

Description:282830-8 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:282830-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA 66, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight/Right Angle
Depth	13.9mm
Insulation Height	0.453 11.50mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	8
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.68 Nm (6 Lb-In)
Number of Ways	17
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.05-2mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Max Supply Voltage (AC)	300V
Length	40mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

282830-8 Product Details

282830-8 Overview

Packaging is in the form of Plug.Mounting type is Free Hanging (In-Line).The product is packaged in a Bulk case.It's from the Buchanan Series.There are also features like PA 66, 94V-0, just to name a few.A number of features make the Side Stacking feature more powerful.Cable, Free Hanging is the mounting point for the part.Devices operate at -40°C~110°C operating temperatures.Other Plug for Unshrouded Header products benefit from this part as well.
