Name: 282836-9
Brand: TE Connectivity AMP Connectors
SKU: 282836-9
Price: 4.61000 USD
Availability: InStock

new-10%

282836-9

Manufacturer part number:282836-9

Manufacturer:TE Connectivity AMP Connectors

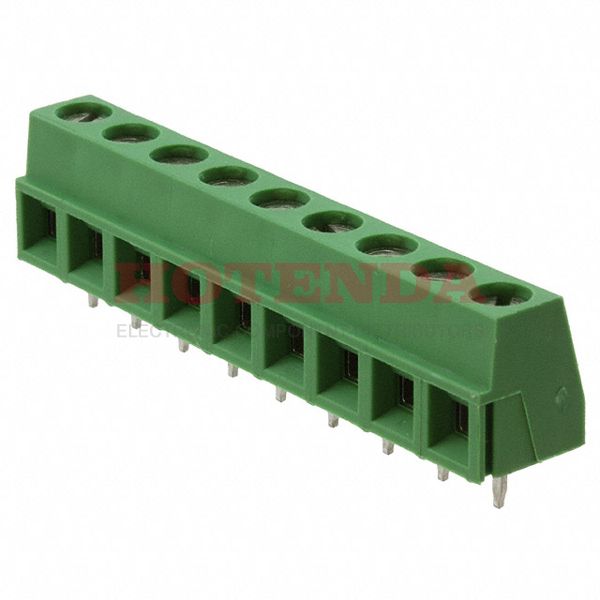

Description:0.197 5.00mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282836-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Tray
Series	Buchanan
Published	2002
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Receptacle
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated DC	250V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.2mm
Current Rating	13.5A
Voltage - Rated AC	250V
Lead Pitch	5mm
Number of Contacts	9
Wire Gauge	16-30 AWG
ELV	Compliant
Max Current Rating	13.5A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Wire/Cable Gauge	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.68 Nm (6 Lb-In)
Number of Ways	9
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Length	45mm
Width	10mm
Length - Tail	3.5mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

282836-9 Product Details

282836-9 Overview

Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Buchanan Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -40°C for this device.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
