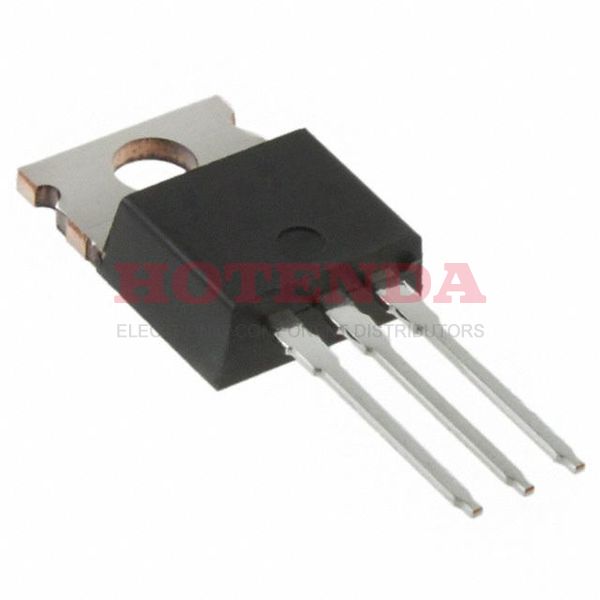

Name: SUP65P04-15-E3
Brand: Vishay Siliconix
SKU: SUP65P04-15-E3
Availability: InStock

new-10%

SUP65P04-15-E3

Manufacturer part number:SUP65P04-15-E3

Manufacturer:Vishay Siliconix

Description:MOSFET P-CH 40V 65A TO220AB

Case Package:SOT-23

Datasheet:SUP65P04-15-E3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2011
Series	TrenchFET®
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Subcategory	Other Transistors
Technology	MOSFET (Metal Oxide)
Pin Count	3
Number of Elements	1
Power Dissipation-Max	3.75W Ta 120W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	3.75W
Case Connection	DRAIN
Turn On Delay Time	15 ns
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	15m Ω @ 30A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	5400pF @ 25V
Current - Continuous Drain (Id) @ 25°C	65A Tc
Gate Charge (Qg) (Max) @ Vgs	130nC @ 10V
Rise Time	380ns
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	140 ns
Turn-Off Delay Time	75 ns
Continuous Drain Current (ID)	-65A
Threshold Voltage	-3V
JEDEC-95 Code	TO-220AB
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	40V
Pulsed Drain Current-Max (IDM)	240A
Nominal Vgs	-3 V
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About SUP65P04-15-E3

The SUP65P04-15-E3 from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET P-CH 40V 65A TO220AB.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SUP65P04-15-E3, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
