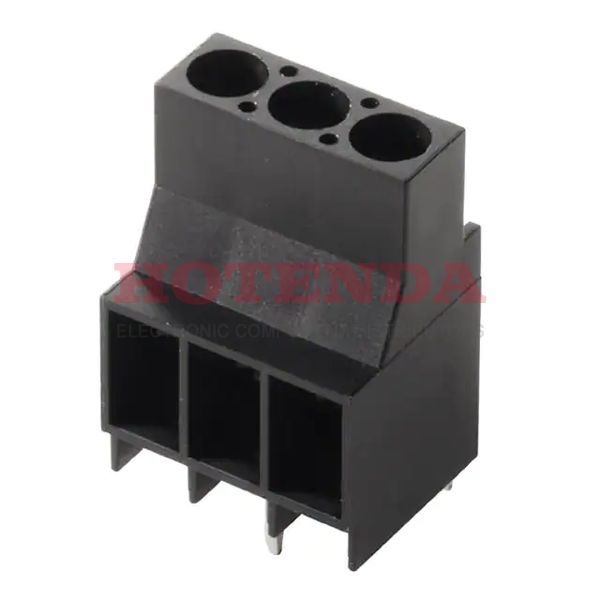

Name: 1356900000
Brand: Weidmüller
SKU: 1356900000
Price: 5.92000 USD
Availability: InStock

new-10%

1356900000

Manufacturer part number:1356900000

Manufacturer:Weidmüller

Description:0.250 6.35mm Black Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 10-26 AWG Omnimate LL

Case Package:SOT-23

Datasheet:1356900000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LL
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Black
Pitch	0.250 6.35mm
Wire Gauge	10-26 AWG
Voltage	600V
Number of Levels	1
Current	30A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	10 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M3
Number of Positions Per Level	8
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1356900000 Product Details

1356900000 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Omnimate LL Series of products.Through Hole mounts the part.There is no operating temperature for the device.
