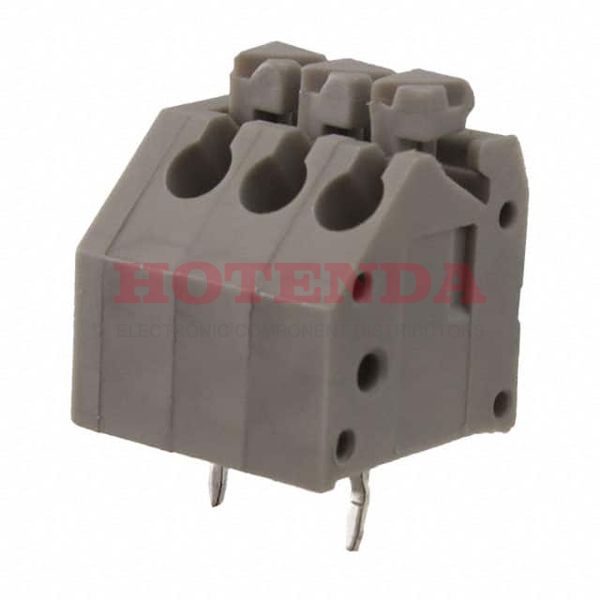

EB59A-03-A

  • EB59A-03-A - 0.138 3.50mm Gray Bulk Polyamide (PA66), Nylon 6/6 Through Hole, Kinked Pin Horizontal with Board Screwless - Leg Spring, Push-In Spring 1 Levels 18-22 AWG EB
  • EB59A-03-A - 0.138 3.50mm Gray Bulk Polyamide (PA66), Nylon 6/6 Through Hole, Kinked Pin Horizontal with Board Screwless - Leg Spring, Push-In Spring 1 Levels 18-22 AWG EB

EB59A-03-A

EB59A-03-A

Adam Tech

0.138 3.50mm Gray Bulk Polyamide (PA66), Nylon 6/6 Through Hole, Kinked Pin Horizontal with Board Screwless - Leg Spring, Push-In Spring 1 Levels 18-22 AWG EB

SOT-23

EB59A-03-A Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Mounting Type Through Hole, Kinked Pin
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Phosphor Bronze - Tin Plated
Operating Temperature-40°C~105°C
PackagingBulk
Series EB
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Gray
Pitch 0.138 3.50mm
Wire Gauge18-22 AWG
Voltage 300V
Number of Levels 1
Current 5A
Positions Per Level 3
Mating Orientation Horizontal with Board
Wire TerminationScrewless - Leg Spring, Push-In Spring
RoHS StatusROHS3 Compliant
In-Stock:5230 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.670000$0.67
10$0.632075$6.32075
100$0.596298$59.6298
500$0.562545$281.2725
1000$0.530703$530.703

EB59A-03-A Product Details

EB59A-03-A Overview


It's mounted Through Hole, Kinked Pin.We use a Bulk case to package the product.It's from the EB Series.-40°C~105°C Operating Temperature is what the device runs at.

EB59A-03-A Features


EB series


EB59A-03-A Applications


There are a lot of Adam Tech
EB59A-03-A Terminal Blocks applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
