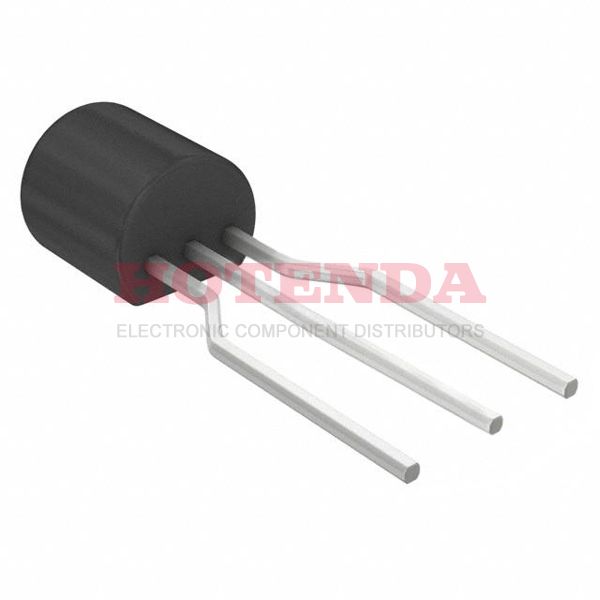

MPSA56RLRPG Overview
As explained above, DC current gain takes into account the rate at which the base current flows through the collector current; therefore, DC current gain for this device is 100 @ 100mA 1V.The collector emitter saturation voltage is 250mV, which allows for maximum design flexibility.VCE saturation indicates Ic is at maximum level (saturated), whereas vce saturation (Max) indicates there is no saturation.A high level of efficiency can be achieved if the base voltage of the emitter remains at 4V.In definition, current rating refers to the maximum current a fuse can carry for an indefinite period without deteriorating too much, and the current rating of this device is -500mA.As a result, the part has a transition frequency of 50MHz.Maximum collector currents can be below 500mA volts.
MPSA56RLRPG Features
the DC current gain for this device is 100 @ 100mA 1V
a collector emitter saturation voltage of 250mV
the vce saturation(Max) is 250mV @ 10mA, 100mA
the emitter base voltage is kept at 4V
the current rating of this device is -500mA
a transition frequency of 50MHz
MPSA56RLRPG Applications
There are a lot of ON Semiconductor MPSA56RLRPG applications of single BJT transistors.
- Driver
- Interface
- Muting
- Inverter
