Name: OSTTF040161
Brand: On Shore Technology Inc.
SKU: OSTTF040161
Price: 1.31000 USD
Availability: InStock

new-10%

OSTTF040161

Manufacturer part number:OSTTF040161

Manufacturer:On Shore Technology Inc.

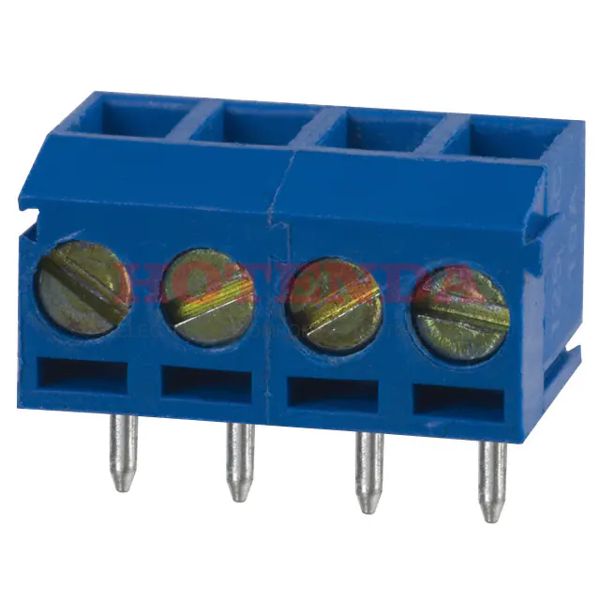

Description:0.138 3.50mm Blue Bulk Thermoplastic Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-26 AWG OSTTF

Case Package:SOT-23

Datasheet:OSTTF040161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTF
Feature	Interlocking (Side)
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Blue
Number of Rows	1
Pitch	0.138 3.50mm
Wire Gauge	16-26 AWG
Voltage	125V
Plating	Steel
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.2 Nm (1.7 Lb-In)
Number of Ways	4
Safety Approval	CSA; UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2
Number of Positions Per Level	4
Height	7mm
Length	14mm
Width	8.4mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTF040161 Product Details

OSTTF040161 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the OSTTF Series of products.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.There is no operating temperature for the device.
