Name: 1726040
Brand: Phoenix Contact
SKU: 1726040
Price: 3.83000 USD
Availability: InStock

new-10%

1726040

Manufacturer part number:1726040

Manufacturer:Phoenix Contact

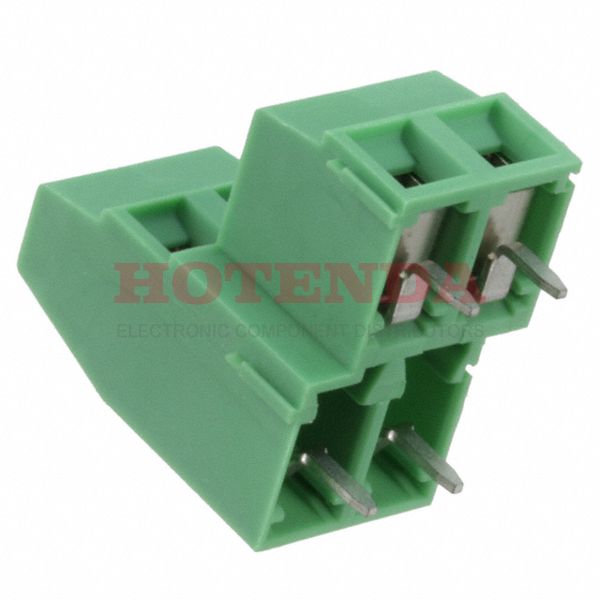

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 14-30 AWG COMBICON MKKDSN

Case Package:SOT-23

Datasheet:1726040 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	4
Housing Material	Polyamide (PA), Nylon
Weight	28.349523g
Packaging	Bulk
Series	COMBICON MKKDSN
Published	2001
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw
Number of Positions	2
Max Operating Temperature	100°C
Min Operating Temperature	-20°C
Color	Green
Number of Rows	2
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	18.3mm
Current Rating	13.5A
Voltage - Rated AC	250V
Lead Pitch	5.08mm
Number of Contacts	2
Housing Color	Green
Wire Gauge	14-30 AWG
Voltage	300V
Number of Circuits	4
Max Supply Voltage	250V
Max Current Rating	13.5A
Number of Levels	2
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	26 AWG
Number of Poles	4
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	2
Number of Lines	2
Test Voltage	4kV
Height	18.3mm
Length	12.7mm
Width	19.1mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1726040 Product Details

1726040 Overview

It comes in Screw packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MKKDSN Series of products.The device is equipped with 4 pins.It's best to use it when the temperature is below 100°C.This device must operate at a minimum temperature of -20°C.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The part consists of 4 circuits.The supply voltage of this chip should not exceed 250V.
