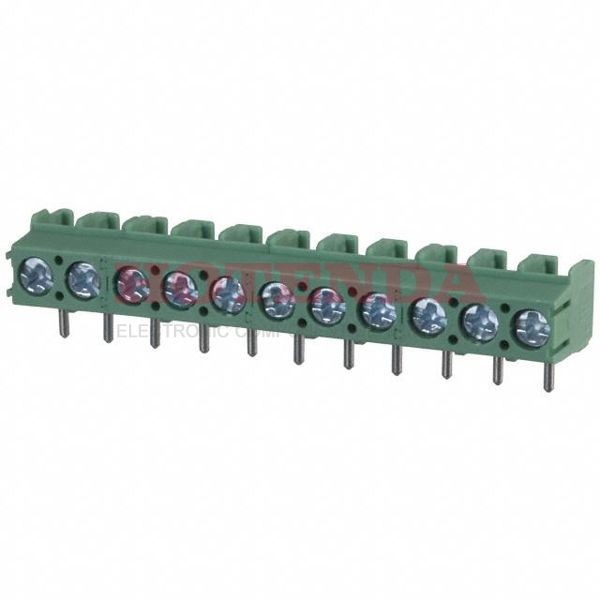

Name: 1935404
Brand: Phoenix Contact
SKU: 1935404
Price: 2.43000 USD
Availability: InStock

new-10%

1935404

Manufacturer part number:1935404

Manufacturer:Phoenix Contact

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw 1 Levels 12-26 AWG COMBICON PT

Case Package:SOT-23

Datasheet:1935404 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	10.96999g
Packaging	Bulk
Series	COMBICON PT
Published	2005
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	250V
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	11.4mm
Current Rating	17.5A
Approval Agency	CB, UL, VDE
Number of Contacts	11
Wire Gauge	12-26 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	16A
Number of Levels	1
Current	18A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	11
Safety Approval	UL
Mating Orientation	Vertical with Board
Wire Termination	Screw
Screw Thread	M2.6
Stripping Length	5mm
Height	9mm
Length	11.3mm
Width	55mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1935404 Product Details

1935404 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON PT Series of products.Additionally, there are other features, such as PA, 94V-0.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.This chip should not be supplied with a voltage greater than 250V.
