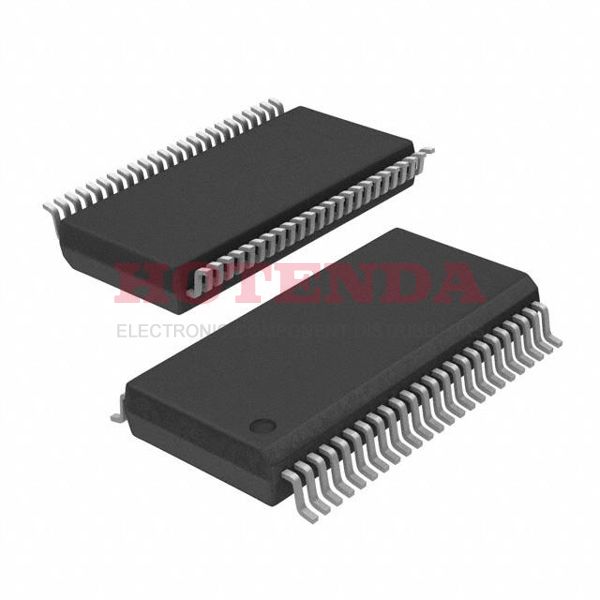

SN74AHC16374DLG4 Overview
The item is packaged in 48-BSSOP (0.295, 7.50mm Width)cases. It is included in the package Tube. T flip flop uses Tri-State, Non-Invertedas its output configuration. JK flip flop uses Positive Edgeas the trigger. In this case, the electronic component is mounted in the way of Surface Mount. The supply voltage is set to 2V~5.5V. A temperature of -40°C~85°C TAis considered to be the operating temperature. This D latch has the type D-Type. In terms of FPGAs, it belongs to the 74AHC series. You should not exceed 120MHzin the output frequency of the device. D latch consists of 2 elements. During its operation, it consumes 4μA quiescent energy. There have been 48 terminations. Members of the 74AHC16374family make up this object. The power source is powered by 3.3V. Input capacitance of this device is 2.5pF farads. An electronic device belonging to the family AHC/VHC/H/U/Vcan be found here. Surface Mount mounts this electronic component. As you can see from the design, it has pins with 48. This device exhibits a clock edge trigger type of Positive Edge. This device is part of the FF/Latchesbase part number family. There are 16bits in this flip flop. The maximal supply voltage (Vsup) reaches 5.5V. It is imperative that the supply voltage (Vsup) is maintained above 2Vin order to ensure normal operation. The flip flop has 2embedded ports. Its output current of 8mAallows for maximum design flexibility. The JK flip flop is with 3 output lines to operate.
SN74AHC16374DLG4 Features
Tube package
74AHC series
48 pins
16 Bits
SN74AHC16374DLG4 Applications
There are a lot of Texas Instruments SN74AHC16374DLG4 Flip Flops applications.
- Registers
- Clock pulse
- Matched Rise and Fall
- Communications
- Functionally equivalent to the MC10/100EL29
- Latch
- Pattern generators
- Set-reset capability
- Shift Registers
- Divide a clock signal by 2 or 4
