Name: IRFR110TRL
Brand: Vishay Siliconix
SKU: IRFR110TRL
Availability: InStock

new-10%

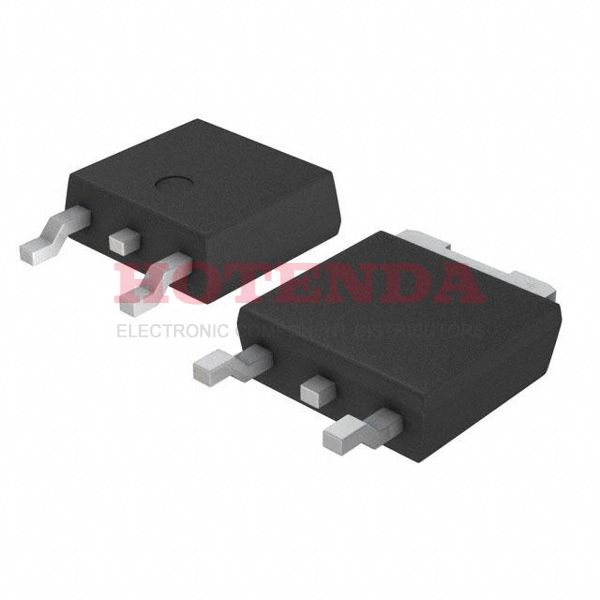

IRFR110TRL

Manufacturer part number:IRFR110TRL

Manufacturer:Vishay Siliconix

Description:MOSFET N-CH 100V 4.3A DPAK

Case Package:SOT-23

Datasheet:IRFR110TRL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Supplier Device Package	D-Pak
Weight	1.437803g
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2016
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Voltage - Rated DC	100V
Technology	MOSFET (Metal Oxide)
Current Rating	4.7A
Number of Channels	1
Power Dissipation-Max	2.5W Ta 25W Tc
Element Configuration	Single
Turn On Delay Time	6.9 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	540mOhm @ 2.6A, 10V
Vgs(th) (Max) @ Id	4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	180pF @ 25V
Current - Continuous Drain (Id) @ 25°C	4.3A Tc
Gate Charge (Qg) (Max) @ Vgs	8.3nC @ 10V
Rise Time	16ns
Drain to Source Voltage (Vdss)	100V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	9.4 ns
Turn-Off Delay Time	15 ns
Continuous Drain Current (ID)	4.3A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	100V
Input Capacitance	180pF
Drain to Source Resistance	540mOhm
Rds On Max	540 mΩ
Nominal Vgs	2 V
Height	2.39mm
Length	6.73mm
Width	6.22mm
REACH SVHC	Unknown
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

About IRFR110TRL

The IRFR110TRL from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 100V 4.3A DPAK.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRFR110TRL, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
