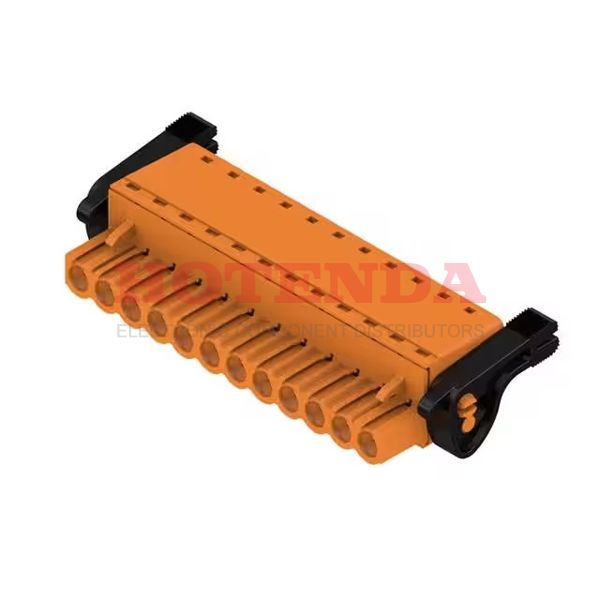

Name: 1014480000
Brand: Weidmüller
SKU: 1014480000
Price: 6.54000 USD
Availability: InStock

new-10%

1014480000

Manufacturer part number:1014480000

Manufacturer:Weidmüller

Description:1014480000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1014480000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Box
Published	2009
Series	Omnimate BL
Feature	Ejector Latches, Retention Latches (Non-Wire Side)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Ingress Protection	IP20
Insulation Height	0.564 14.33mm
Current Rating	19A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CSA, cURus
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	18.5A
Voltage - IEC	400V
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	24A
Number of Positions Per Level	12
Stripping Length	10mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1014480000 Product Details

1014480000 Overview

Its mounting type is Free Hanging (In-Line).We pack the product in a Box case.The product is part of the Omnimate BL Series.Other features include STANDARD: UL 94V-0, to name just a few.A number of features make the Ejector Latches, Retention Latches (Non-Wire Side) feature more powerful.In this case, Free Hanging mounts the part.Operating temperature is -50°C~100°C.As with other Plug, Female Sockets products, this part has a lot of benefits.
