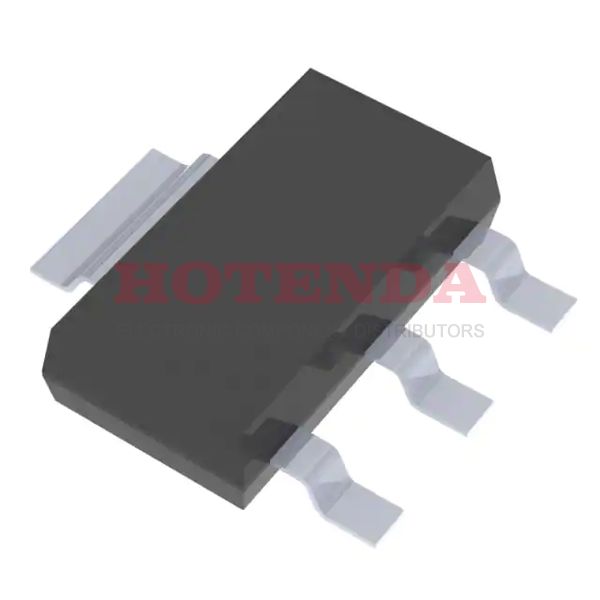

FZT757TA Overview
This device has a DC current gain of 50 @ 100mA 5V, which is the ratio between the base current and the collector current.The collector emitter saturation voltage is -500mV, giving you a wide variety of design options.Saturation of VC means the Ic value is at its maximum, so vce saturation (Max) is 500mV @ 10mA, 100mA.Emitter base voltages of -5V can achieve high levels of efficiency.A fuse's current rating indicates how much current it will be able to carry over an indefinite period, and this device has a current rating of (-500mA).There is a transition frequency of 30MHz in the part.The breakdown input voltage is 300V volts.A maximum collector current of 500mA volts is possible.
FZT757TA Features
the DC current gain for this device is 50 @ 100mA 5V
a collector emitter saturation voltage of -500mV
the vce saturation(Max) is 500mV @ 10mA, 100mA
the emitter base voltage is kept at -5V
the current rating of this device is -500mA
a transition frequency of 30MHz
FZT757TA Applications
There are a lot of Diodes Incorporated FZT757TA applications of single BJT transistors.
- Driver
- Inverter
- Muting
- Interface
