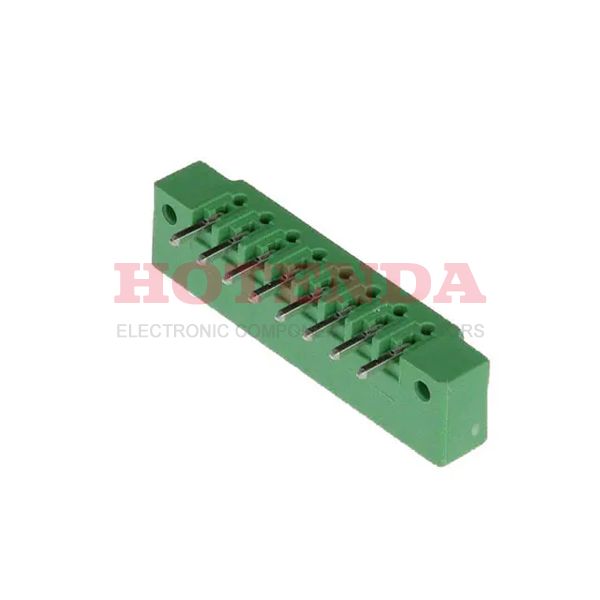

Name: 1843855
Brand: Phoenix Contact
SKU: 1843855
Price: 5.66000 USD
Availability: InStock

new-10%

1843855

Manufacturer part number:1843855

Manufacturer:Phoenix Contact

Description:1843855 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843855 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2010
Series	COMBICON MC
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, UL 94V-0
Pitch	0.138 3.50mm
Orientation	Right Angle
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	8
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	8
Height	10.65mm
Length	9.2mm
Width	38.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843855 Product Details

1843855 Overview

The packaging is Plug.A Through Hole mounting type is specified for the device.Packaging for the product is carried out via a Bulk case.Among the products in the COMBICON MC Series, it is one of the most popular.There are also other features like PBT, UL 94V-0, to name a few.Several benefits come from the Mating and Mounting Flange feature.Mounting of the part is based on Through Hole.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
