Name: 1869101
Brand: Phoenix Contact
SKU: 1869101
Price: 4.15000 USD
Availability: InStock

new-10%

1869101

Manufacturer part number:1869101

Manufacturer:Phoenix Contact

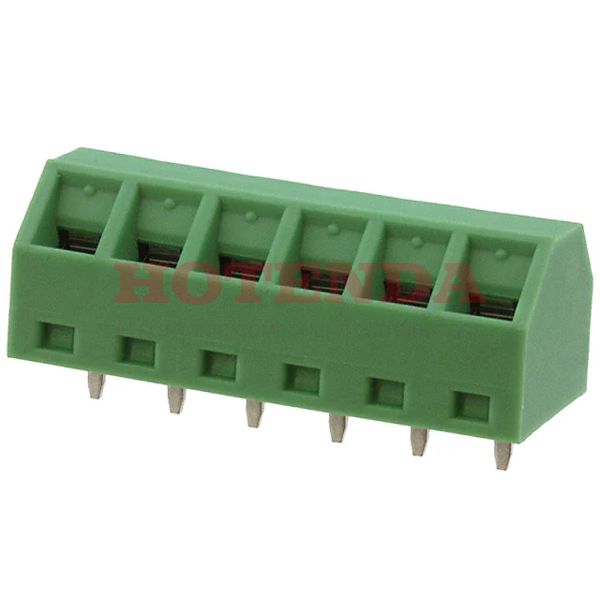

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole 55° (125°) Angle with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON SMKDSN

Case Package:SOT-23

Datasheet:1869101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	6.819988g
Packaging	Bulk
Series	COMBICON SMKDSN
Published	2012
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight
Depth	12mm
Reach Compliance Code	unknown
Current Rating	13.5A
Approval Agency	CB, CSA, UL, cULus
Number of Contacts	6
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	13.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Mating Orientation	55° (125°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	6mm
Height	14.5mm
Length	31mm
Width	31mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1869101 Product Details

1869101 Overview

A Screw package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON SMKDSN Series of products.Additionally, there are other features, such as PA, 94V-0.Through Hole mounts the part.This chip should not be supplied with a voltage greater than 250V.
