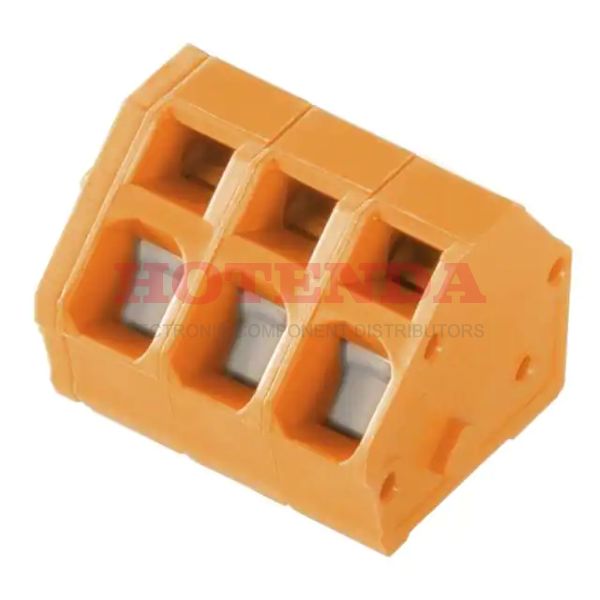

Name: 1960240000
Brand: Weidmüller
SKU: 1960240000
Price: 4.79000 USD
Availability: InStock

new-10%

1960240000

Manufacturer part number:1960240000

Manufacturer:Weidmüller

Description:0.197 5.00mm Orange Bulk Thermoplastic, Wemid Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 14-26 AWG Omnimate LMZF

Case Package:SOT-23

Datasheet:1960240000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Electrolytic Copper - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LMZF
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Current Rating	10A
Approval Agency	cURus
Wire Gauge	14-26 AWG
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	23
Safety Approval	UL; CSA
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Hole Diameter	1.3 mm
Number of Positions Per Level	23
Stripping Length	6mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1960240000 Product Details

1960240000 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate LMZF Series.Other features include STANDARD: UL 94V-0, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -50°C~120°C operating temperatures.
