Name: 1729199
Brand: Phoenix Contact
SKU: 1729199
Price: 5.27000 USD
Availability: InStock

new-10%

1729199

Manufacturer part number:1729199

Manufacturer:Phoenix Contact

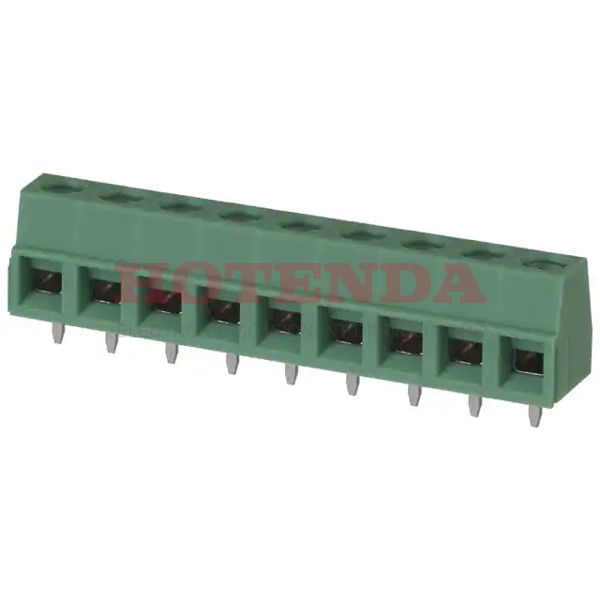

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDSN

Case Package:SOT-23

Datasheet:1729199 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	8.699987g
Packaging	Bulk
Series	COMBICON MKDSN
Published	2003
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	400V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.1mm
Current Rating	13.5A
Approval Agency	CB, CSA, UL, cULus
Number of Contacts	9
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	13.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	9
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	6mm
Height	40.64mm
Length	8.1mm
Width	45.72mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1729199 Product Details

1729199 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MKDSN Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.There should be no voltage above 0 on the supply line for this chip.
