Name: 796739-2
Brand: TE Connectivity AMP Connectors
SKU: 796739-2
Price: 3.26000 USD
Availability: InStock

new-10%

796739-2

Manufacturer part number:796739-2

Manufacturer:TE Connectivity AMP Connectors

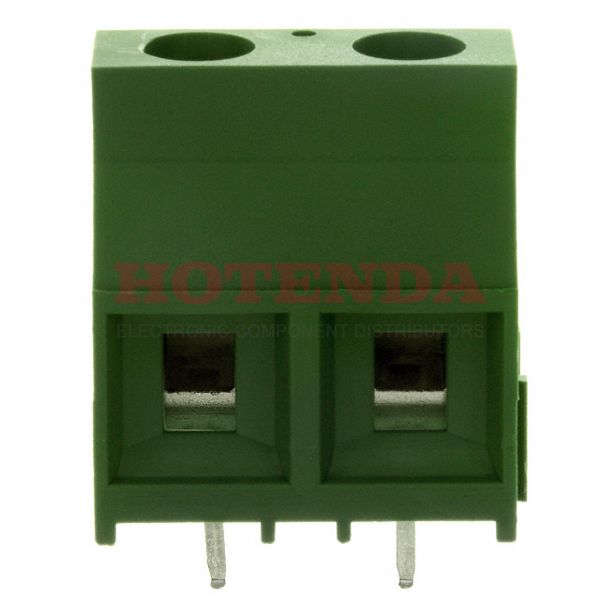

Description:0.375 9.53mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 10-30 AWG Buchanan

Case Package:SOT-23

Datasheet:796739-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Tray
Series	Buchanan
Published	2002
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	600V
Additional Feature	PA66, 94V-0
HTS Code	8536.69.40.40
Pitch	0.375 9.53mm
Orientation	Right Angle
Depth	12.5mm
Current Rating	30A
Approval Agency	UL
Number of Contacts	2
Wire Gauge	10-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	600V
Max Current Rating	30A
Number of Levels	1
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	10 AWG
Wire/Cable Gauge	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	600V
Length	19.64mm
Length - Tail	5.0038mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796739-2 Product Details

796739-2 Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the Buchanan Series of products.In addition, there are other features such as PA66, 94V-0, to mention only a few.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.
